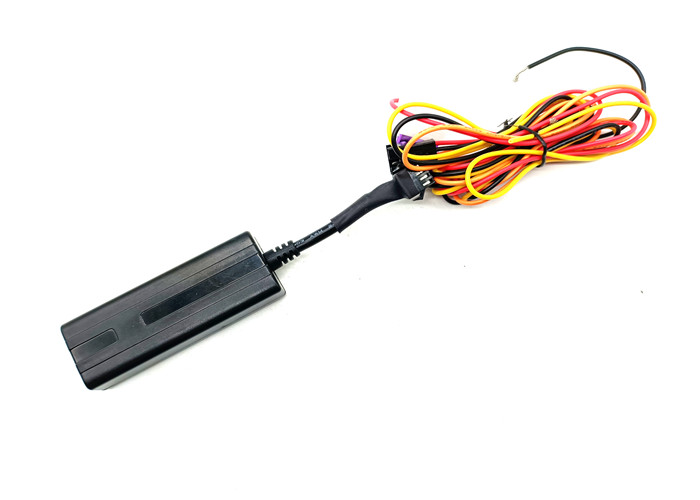

Vehicle Car Gps Tracker TK003 Engine Stop Google Map Platform App No Monthly Fee
TK003 is working Based on existing GSM/GPRS network and GPS satellites, Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety. This product can locate and monitor any remote targets by SMS or internet.
Product features
1. Quad-band, GSM frequencies 850/900/1800/1900MHz
2. MTK6261 GPRS model , Ublox-7 GPS model
3. sleep model
4. Compact size, easy for hiding
5. Low energy consumption
6. Cut oil or circuit (relay is optional )
7. power cut off alarm
8. Acc ignition detection
9. built-in battery is 180Mah
Functions
Initialization
Change Password
Authorization
Single Locating
Auto track continuously
Absolute street address by SMS
Location based service (LBS)
Alarm Function
Power cut off alarm
Geo-fence
Movement alarm
Over speed alarm
ACC working alarm
Control transportation costs
Effectively supervise the mileage and fuel consumption maintenance of the transportation means to prevent overreporting of public oil, and high-cost auto repair and auto parts
Electric fence.
Electronic fences are usually used for vehicle theft prevention, wind control area protection, and also for customer reception. When the vehicle enters or leaves the area, the device will send out an alarm message so that the owner can know it in time.
Drawing electronic fence.
You can draw the electronic fence freely, you can draw a circle directly with the device as the center, and set the radius freely.
It is also possible to draw a polygonal pattern so that multiple devices can share the electronic fence area.
Parameters
| Communication system | GSM |
| GSM Band | 850MHz,900MHz,1800MHz,1900MHz |
| GPRS | Class 12,TCP/IP |
| Memory | 32m(RAM)+32m(ROM) |
| Chip | MT6261 |
| Positioning accuracy | <10M |
| locating time | Cold start≈38s(Open sky)
Warm start≈32s
Hot start≈2s(Open sky) |
| Working Voltage | 9-100V DC |
| Working current | 22mA (12vDC)
12mA (24vDC) |
| Size | 90*40*15mm |
| Weight | 50g |
| Working temperature | -20℃～+70℃ |
| Working humidity | 20%～80%RH |
Vehicle Car Gps Tracker TK003 Engine Stop Google Map Platform App No Monthly Fee
FAQ
1.How to install the GPS Tracking system?
If you don't know the car electronic circuit,please find a specialized installer to install the system for you.
2. How to charge for the GPS Tracking system?
This system need a SIM card to connection with your mobile phone,please consult the customer service of the SIM card operator in local.
3. How many language does this system used?
At pesent the system support +100 languages ,we can customize the language for you.
4. How much data of the device per month?
Our tracker will use about 20 to 30MB data per month
5. How does the device get command and reply to user?
By GPRS and SMS command. All functions on app work on Both GPRS condition and SMS condition.
6. Does the device can locate indoor?
NO, GPS can locate only at outdoor, pls test outdoor.
